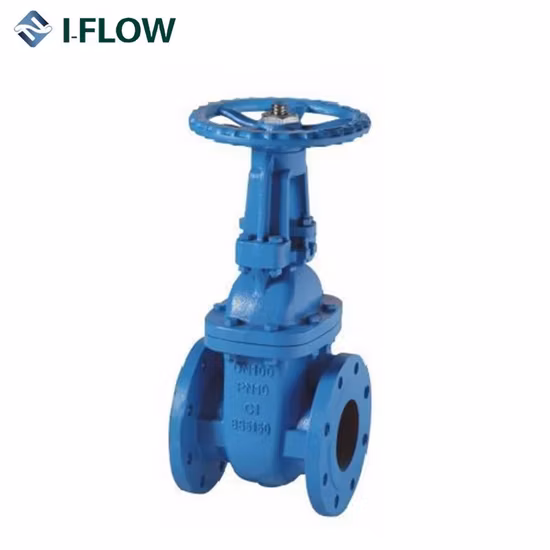

Cast and Forged Gate Valve (Z41H)

Cast and Forged Gate Valve (Z41H)

VATAC Cast and Forged Gate Valves are with Features and Specifications as below: Design & Manufacture: ANSI B16.5, B16.3

Send your inquiry

DESCRIPTION

Basic Info.
Model NO. Z41H
Usage Regulation
Standard ANSI
Application Industrial Usage, Water Industrial Usage, Household Usage
Certificate 1 Dnv CE 0575
Inspect & Test API 598
Certificate 3 API 600
Certificate 4 API 6D
Certificate 2 ISO 9001: 2008
Design & Manufacture API 600, Asme B16.34
Pre-Temp. Rating Asme B16.34
Face to Face Asme B16.10
Characteristic Gate Valve
Ends Connection Asme B16.25, Asme B16.5/16.47
Transport Package Standard Sea Worthy
Specification ANSI, DIN, JIS, ISO, GOST
Trademark VATAC
Origin China
HS Code 84818040
Production Capacity 6000ton Per year
Product Description

VATAC Cast and Forged Gate Valves are with Features and Specifications as below:
Design & Manufacture: ANSI B16.5, B16.34, API 600
OS&Y, Bolted Bonnet
Solid, Flexible or Split Wedge Design
Back-seating, Renewable Seat Ring
Full Port Or Reduced Bore
Optional Upset forged T-head Stem Design
Size Range: 2" to 48"N. B.
Pressure Ratings: ANSI 150, 300, 600, 900
End Connections: Flanged, Buttweld, Socket Weld, Hub Connectors,
Compact Flange or other proprietary connections.
Materials Available in: WCB, LCB, CF8, CF8M, CF3, CF3M, WC6, WC9, C5, C12 or Equivalent, Available also in low temperature steels, low alloy steels, stainless steels, duplex type stainless steels and other exotic materials; Various trim materials available to suit service conditions
Various trim materials are available to suit different service conditions
Actuations: Manual, Electric, Hydrau-Pneumatic Actuator
To MR 0175 and MR 103 on request
DESGN & MFT.API 600ENDS CONNECTIONFLG. RF
PRE-TEP. RATINGASME B16.34INSPECT & TESTAPI 598
F-F DIMENSIONANSI B16.10END CONNECTIONANSI B16.5
MARKINGMSS SP-25FIRE SAFE DESIGN--
PAITINGTBASPE. REQUIREMENTSN.A
