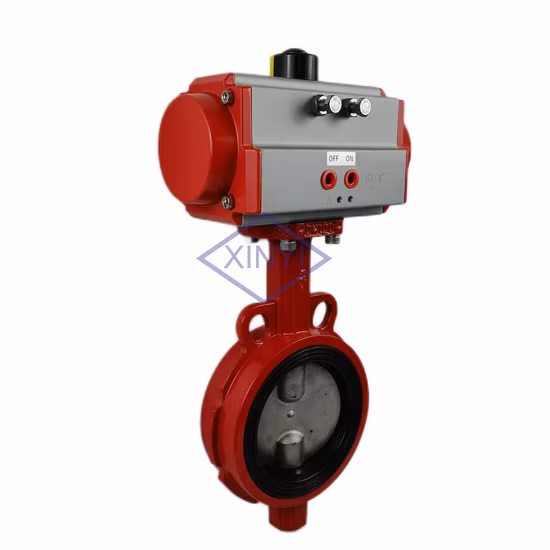

Stainless Steel 304 Valve Plate CF8 Wafer Style DN100 on off Butterfly Valve

Stainless Steel 304 Valve Plate CF8 Wafer Style DN100 on off Butterfly Valve

Pn16 DN100 Pneumatic Regulating Soft Sealing SS304 Butterfly Valve Stainless Steel 304 Valve plate CF8 Wafer Style DN100

Send your inquiry

DESCRIPTION

Basic Info.
Model NO. XYBF
Work Pressure Low Pressure (Pn<1.6mpa)
Working Temperature Medium Temperature (120°C<T<450°C)
Material of Seal Surface Soft Sealed
Valve Body Casting
Standard ANSI API GB....
Application Industrial Usage, Water Industrial Usage, Household Usage, Dyeing, Drinks, Foods
Accessories Locator, .Solenoid Valve Limit Switch
Rubber PTFE+Flexible Graphite
Transport Package Wooden Box
Specification standard
Trademark XinYi
Origin China
HS Code 8481909000
Production Capacity 100000 Sets/Month
Product Description

Stainless Steel 304 Valve Plate CF8 Wafer Style DN100 on off Butterfly Valve

Pn16 DN100 Pneumatic Regulating Soft Sealing SS304 Butterfly Valve
Stainless Steel 304 Valve plate CF8 Wafer Style DN100 on off Butterfly Valve
PN16 4'' Cast Iron Pneumatic aluminium alloy Actuator Wafer Type PTFE centre Sealing Butterfly Valve
ss304 ss316 XYBF50 Di Ci EPDM PTFE Strong Acid Ductile Iron pneumatic actuators control wafer butterfly valve
Pneumatic Actuator PTFE seal wafer connection Casting iron butterfly valve in stock
What is the Connection Standard of our butterfly Valve?
Adoptive Standards
1.Valve Design: API 609, MSS SP-67
2.Face To Face: API 609, MSS SP-67, DIN3202, BS EN558-1
3.Pressure Test: API 598
4.Flange Drilling: ANSI B16.1 class150, BS4504 PN10/PN16, DIN2501 PN10/PN16
5.Top Flange: ISO5211
What is Feature of our butterfly Valve?
Features
1.vertical center line disc
2.Anti-Blow Out Stem
3.Bi-Directional
4.Fire safe Design
5.Low Friction Body Seat
6.Zero Leakage
Standard Test
Body Test: 1.5 times the working pressure with water. This test is performed after valve assembly and with disc in half position
open, it is called as a body hydro test.
Seat Test: 1.1 times the working pressure with water.
Function/Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic
Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature.
It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air
filter regulator etc.
Special Test: On request, any other test can be carried out according to special instruction by client.
Application
1.Water Treatment Plant 2.Breweries
3.Drilling Rigs 4. Heating & Air Conditioning
5.Paper Industry 6.Chemical Industry
7.Gas Plant 8.Pneumatic Conveyors
9.Sugar Industry 10.Waste Effluent Treatment Plant
11.Cooling Water Circulation 12.Compressed Air
1.Size Information

Stainless Steel 304 Valve Plate CF8 Wafer Style DN100 on off Butterfly Valve

Size Range1/2"~8", DN15~200
Acting ModeDouble Acting, Spring Return (Single Acting)
Air Supply Pressure2.5 to 8 bar
Lifespan1,000,000 (1 Million) Times
Angle of Rotation90° ±4°
Optional ActuationHandlever, Electric Actuated, or Pneumatic Actuated

Stainless Steel 304 Valve Plate CF8 Wafer Style DN100 on off Butterfly Valve


Stainless Steel 304 Valve Plate CF8 Wafer Style DN100 on off Butterfly Valve


2.Working photos

Stainless Steel 304 Valve Plate CF8 Wafer Style DN100 on off Butterfly Valve



3.Company Introduction

Wuxi Xinyi Automatic Machinery Factory(original Xishan Xinyi Regulating Valve Factory) is a high-tech enterprise integrated with the research, exploration, design, development, manufacturing and operation of stainless steel vales and cast iron valves. TheFactory is armed with strong technology strength, excellent manufacturing, processing and testing equipment of computer numerical control tool, reliable quality control system and bridle-wise employees.
